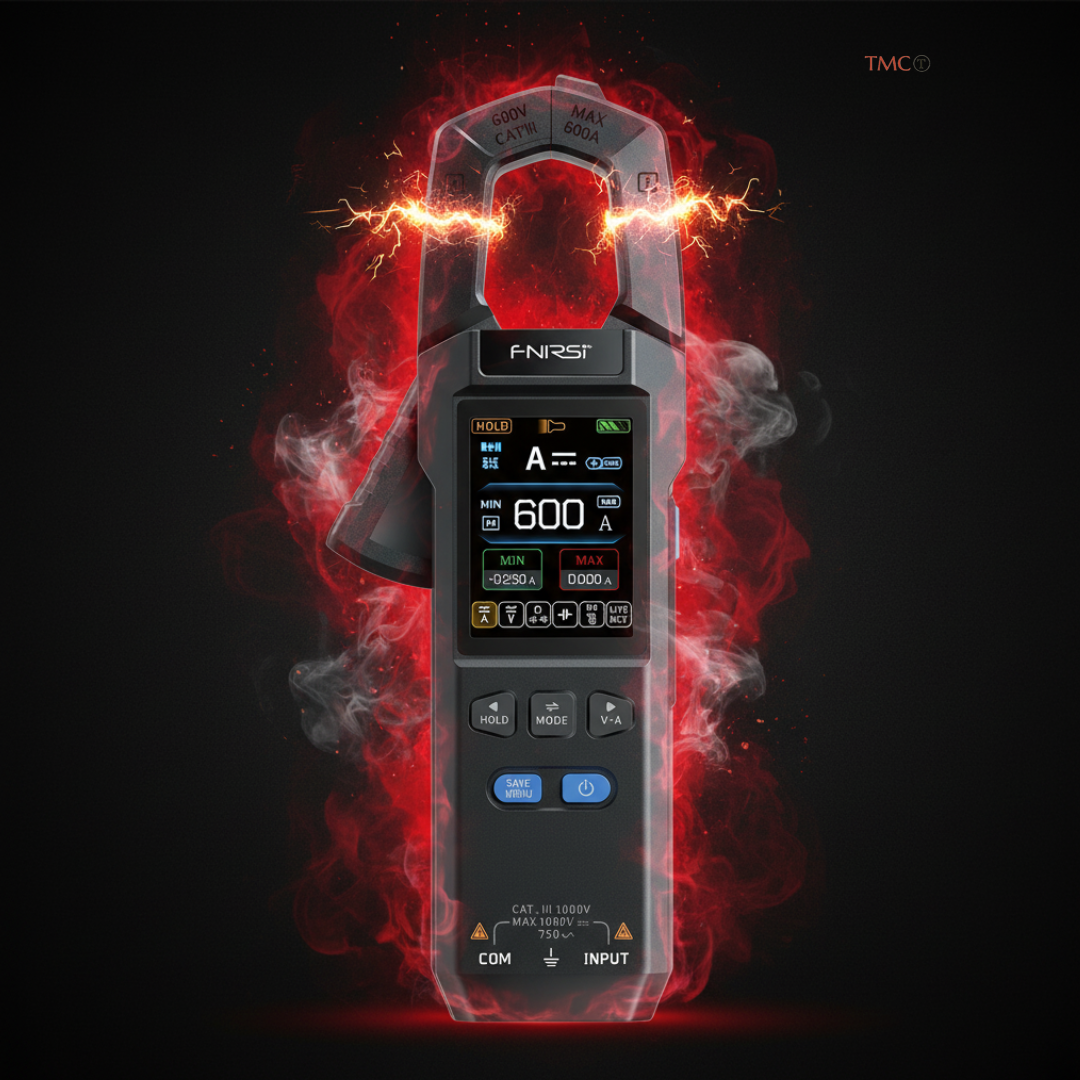

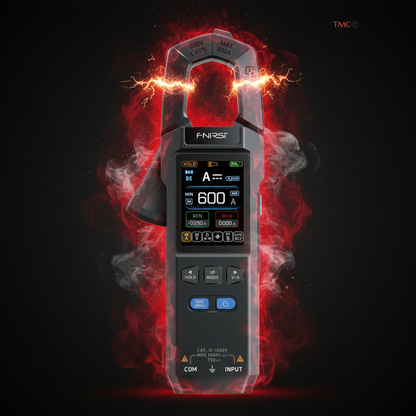

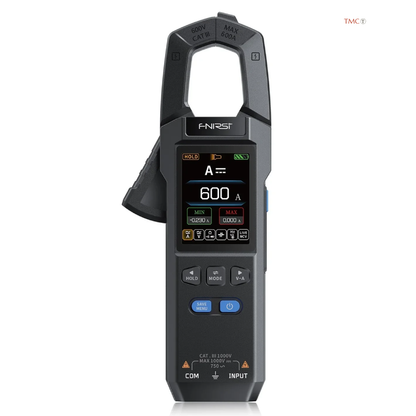

⭐ DMC-100 Smart Clamp Meter — High-Precision. Wide-Range. Built for Professionals.
The DMC-100 is a 10,000-count high-precision intelligent clamp meter engineered for experts who demand accuracy and reliability in every job.
Covering up to 750V voltage and 600A current, it handles everything from engineering maintenance and lab diagnostics to automotive repair and home electrical troubleshooting — fast, safe, and effortlessly.
🔥 Crystal-Clear Display & Smart UI
Equipped with a 2.0-inch 240×320 full-color TFT screen, the DMC-100 delivers crisp readings with a modern UI and intuitive real-time data curves. Every measurement becomes easy to read — even in challenging environments.
Switch instantly between three powerful modes:
- Standard Measurement
- Waveform Display

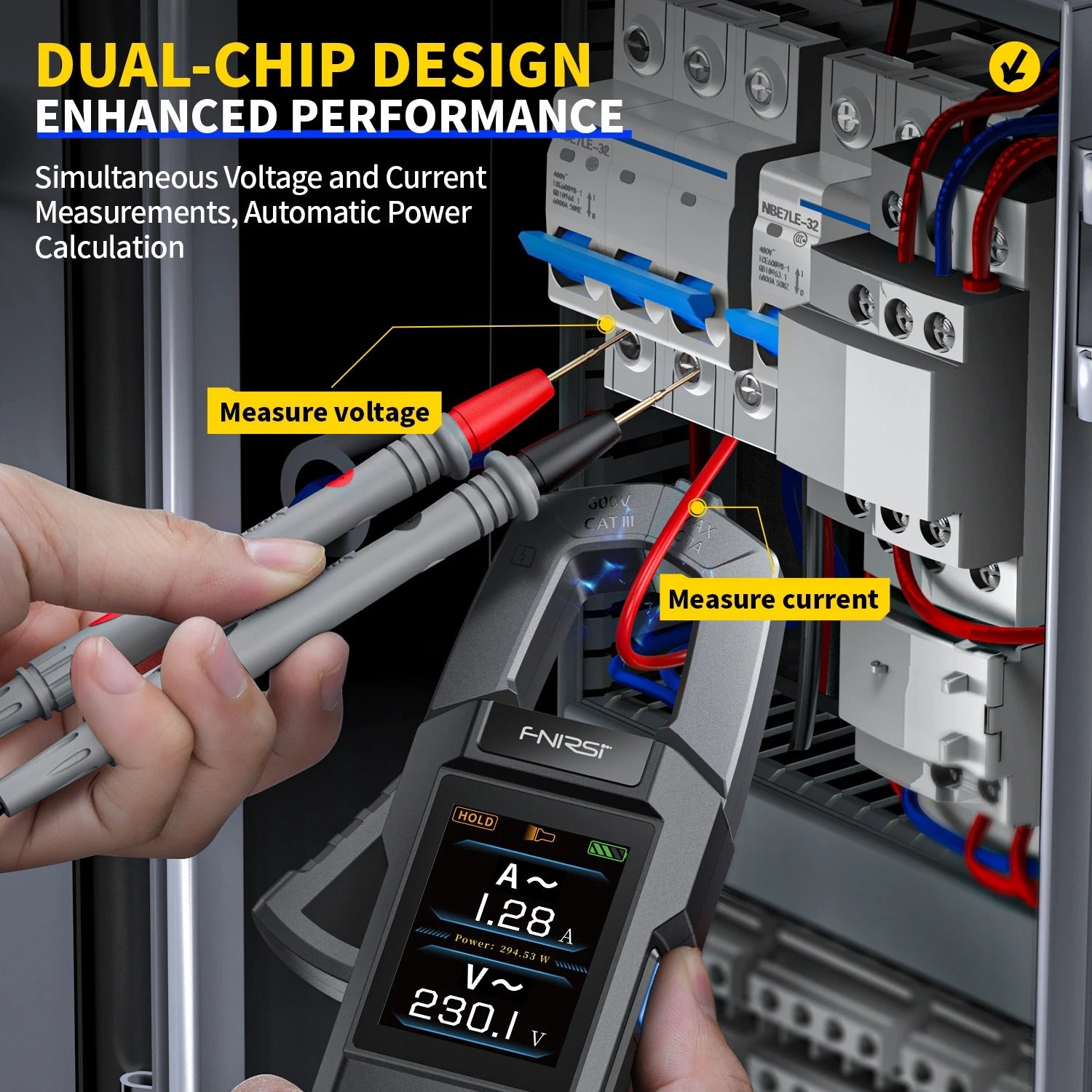

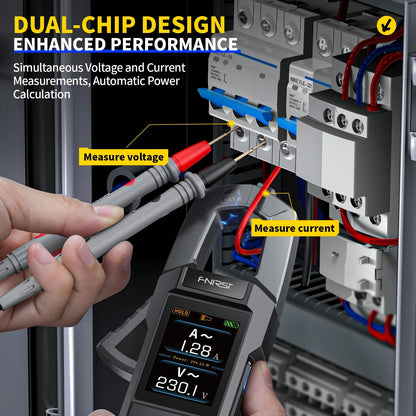

- Power Analysis
⚡ Powerful Features for Real-World Work
The DMC-100 is packed with advanced capabilities designed to replace multiple tools:
- 10,000-count high-precision accuracy

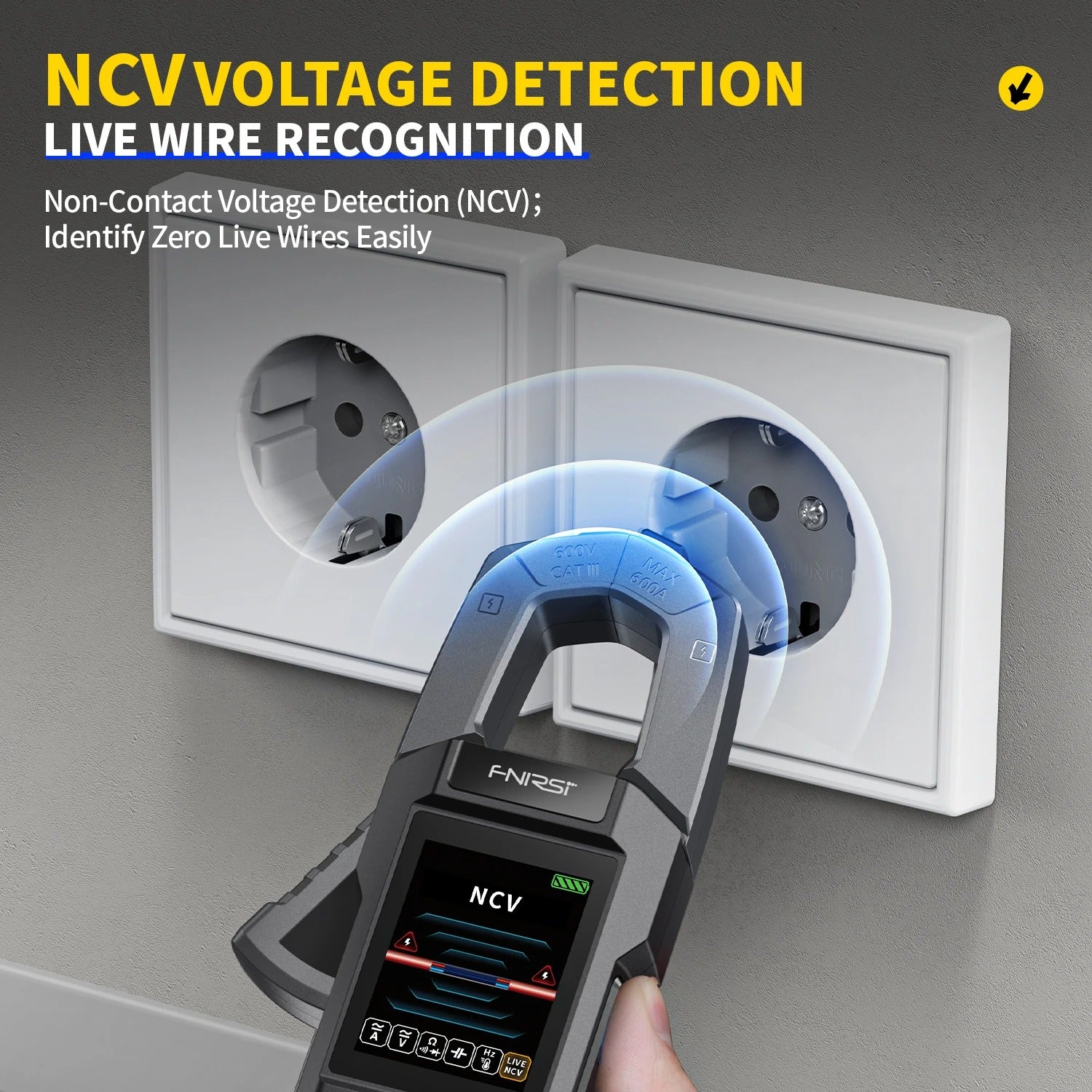

- NCV non-contact voltage detection
- Live & neutral wire identification
- Wide temperature range: –55°C to 1300°C
- 3.7V 1500mAh long-lasting battery
- Brightness-adjustable backlight
- Built-in flashlight for dark workspaces
- Data hold & data storage functions
- Type-C port for fast charging & data transfer
- Intelligent auto shut-off
- Switch freely between °C and °F
-
Firmware-upgradeable — always up to date
💼 Perfect For
- Electricians
- Engineers & technicians
- DIY enthusiasts
- Automotive repair specialists
- Home electrical diagnostics
-
Anyone who needs a reliable all-in-one measurement tool
⭐ Why Professionals Choose the DMC-100
- Ultra-wide measurement range — one tool for every task
- Saves time with quick, accurate readings
- Boosts safety thanks to NCV and smart detection
- Reduces tool clutter — replaces several devices
- Built to last with high-quality components
-
Portable, ergonomic, and intuitive

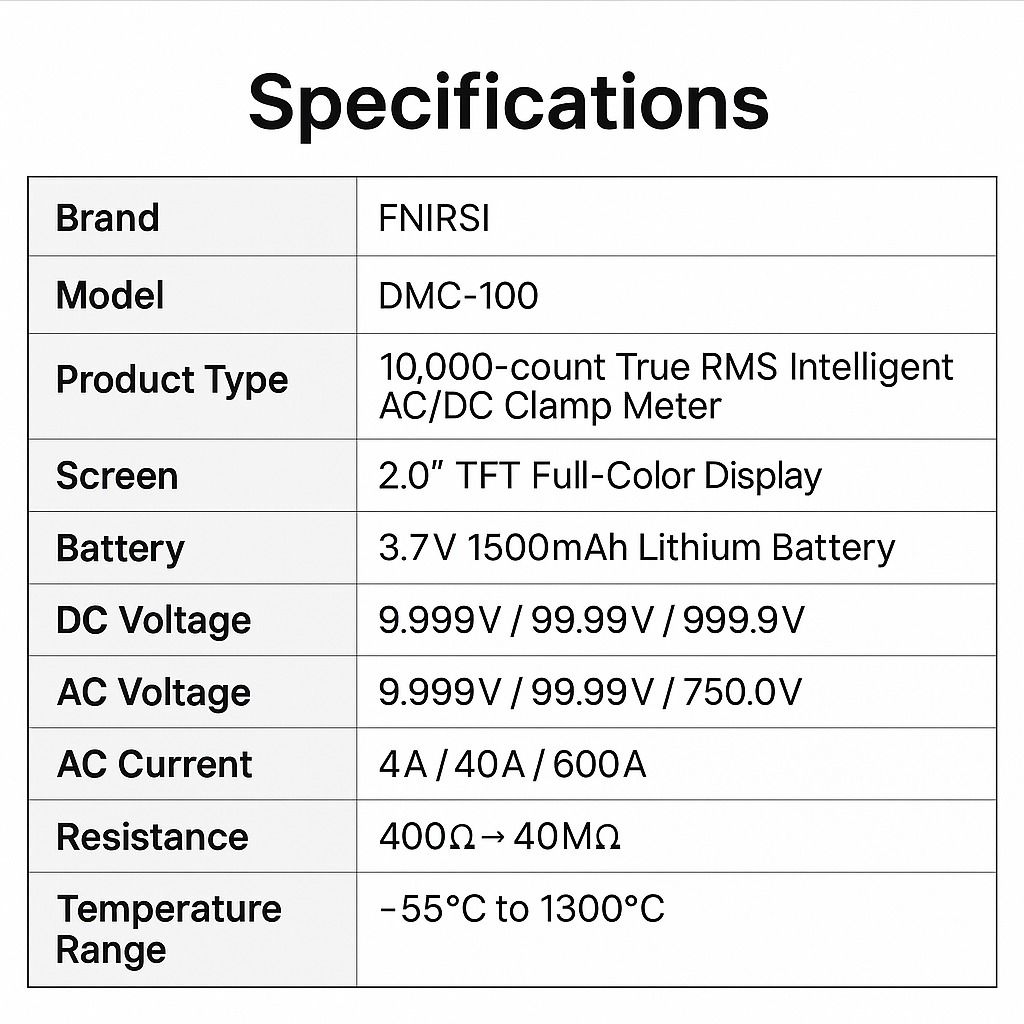

📊 DMC-100 Premium Specifications
| 📦 Model | DMC-100 Clamp Multimeter |

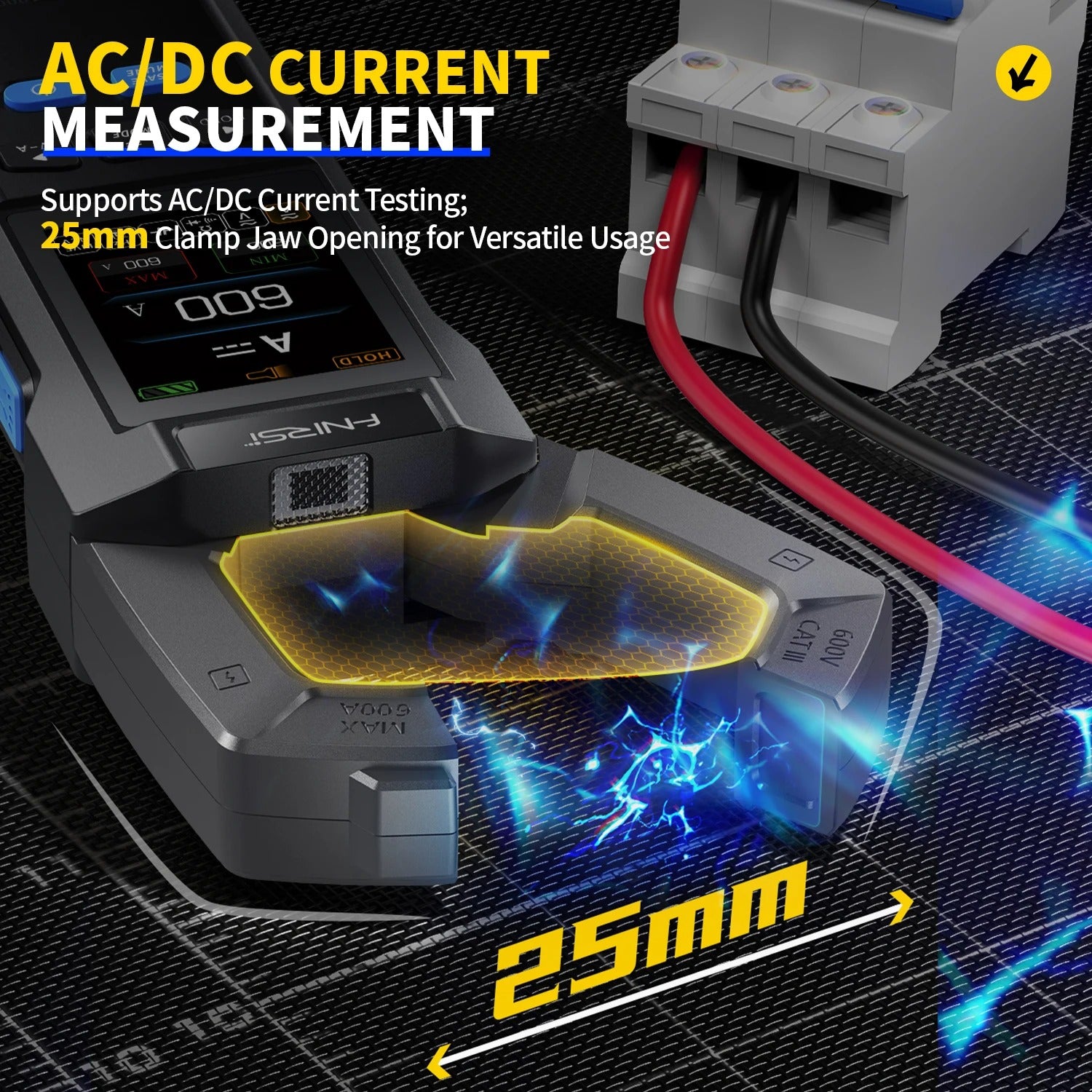

| 🦾 Jaw Opening | 25 mm |
| 🖥️ Display | 2.0" TFT Color (240×320) |
| 🔋 Battery | 3.7V 1500mAh Rechargeable |
| ⚡ Charging | USB Type-C (5V / 1A) |
| ⚖️ Weight | 194 g |
| 📐 Dimensions | 193 × 74 × 32 mm |

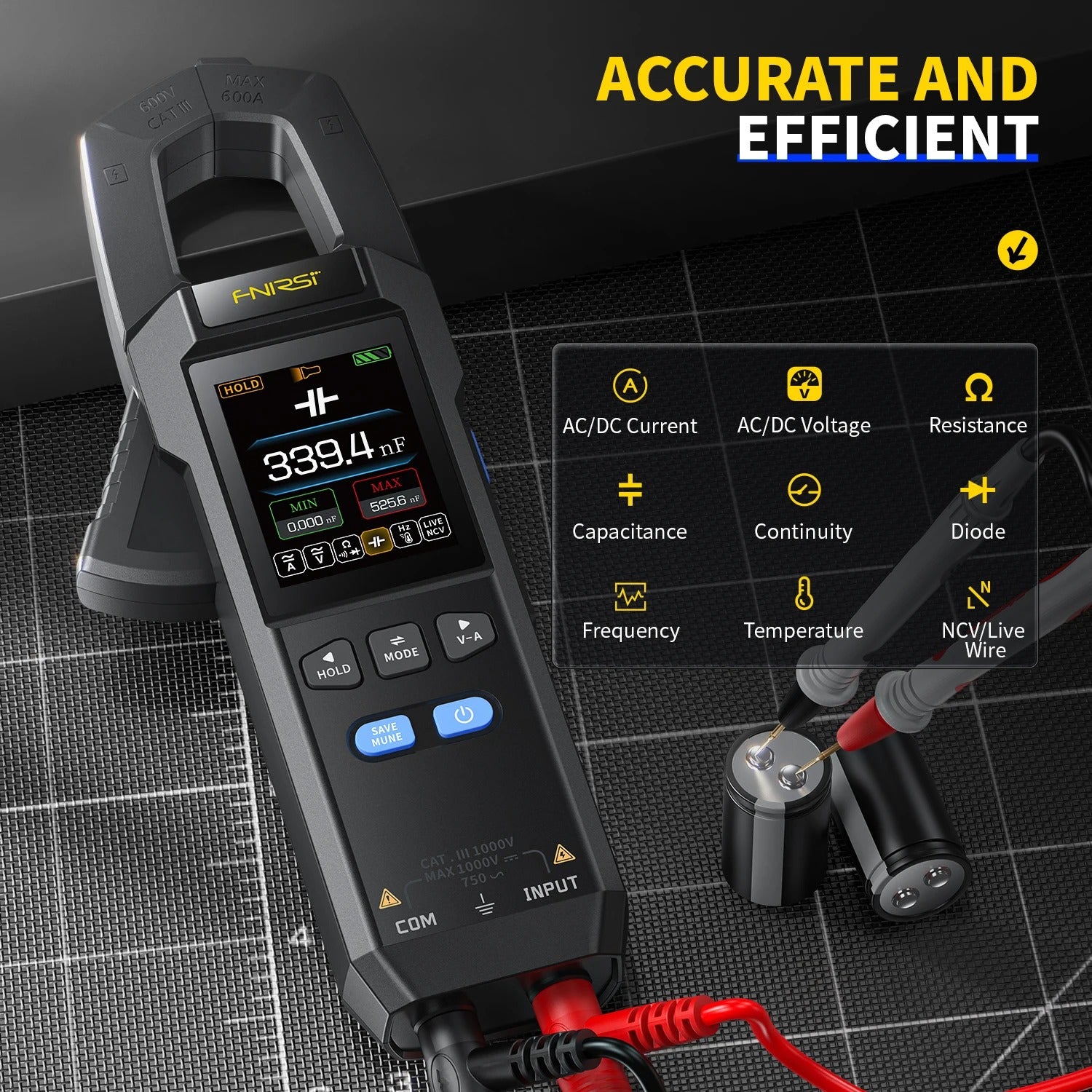

📐 Measurement Ranges
| 🔌 DC Voltage | 9.999V / 99.99V / 999.9V |
| 🔌 AC Voltage | 9.999V / 99.99V / 750.0V |
| 🔧 DC/AC Current | 99.99A / 600.0A |
| 📏 Resistance | 999.9Ω → 99.99MΩ |
| 💾 Capacitance | 9.999nF → 99.99mF |
| 📡 Frequency | 9.999Hz → 9.999MHz |
| 🌡️ Temperature | −55°C → 1300°C / −67°F → 2372°F |
| 🔔 Diode & Continuity | ✔ Diode Test & Continuity |
| ⚡ NCV Detection | ✔ Non-Contact Voltage |
| 🧭 Live/Neutral Check | ✔ |
⚙️ Operating Modes & Features
| 🔄 Modes | General • Waveform • Power |
| 🔦 Flashlight | ✔ Built-in |
| 📌 Data | Data Hold • Zeroing • MAX/MIN |
| 💾 Storage | Up to 30 Groups |
| 💡 Brightness | 10-Level Adjustable Backlight |
| 🌡️ Units | °C / °F |
| ⏱️ Auto Power Off | OFF / 5 / 15 / 30 min |
| 🛠 Firmware Update | Supported |
